2-way car alarm system 'Tiger ESCORT ES-100' Tiger Escort ES-100, a novel car alarm was introduced in 2016. To the top 3 workbook reshebnik. This model is designed with the latest developments in the combination of security and convenience imposed on modern automotive electronic systems.

360 0.31% 357 0.31% 353 0.30% 35 0.03% 35 0.03%. 27 0.02% 27 0.02%. 14 0.01% 14 0.01%.

This model is a new line of alarm systems with two-way communication and simple programming for end users. Bi-directional LCD remote control has a Learning Code and range up to 700 meters in an open area in paging mode.

The metal edges of the product protects the LCD panel from being damaged in the event of a fall. Due to the display contrast, large icons within the LCD are clearly visible in any light intensity. Tiger Escort ES-100 has slim and elegant design of the regular remote control. The LCD remote features a built-in buzzer that emits a higher volume alert during an alarm. Additional features were added to the Tiger Escort ES-100 like, check current status of vehicle, call the driver, check if vehicle is in range, block engine relay, and five additional channels with fixed functions.

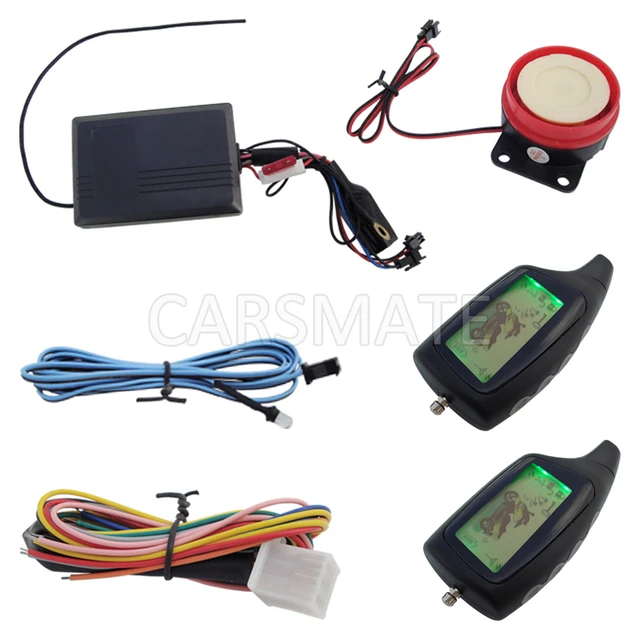

Tiger Escort ES-100 may be installed in any car, providing not only protection but also comfort during its operation due to its standard and programmable features. Security and service functions • Two remote controls. • 433.92 MHz working frequency. • One 4-button LCD remote control. • One 4-button slim remote control. • Learning Code. • Control range: up to 100 meters.

• Range of paging: 700 meters. • 2-zone shock sensor included • ARM / DISARM by separate buttons of remote control. • Locking / Unlocking the doors. • Management locks the doors when IGN ON / OFF.

• Silent ARM. • ARM / DISARM without siren chirps. • Two-step disarm. • '-' 300 mA trunk opener output.

• Five additional channels • Personal 2-digits programable PIN code • ALARM mode. • SEARCH mode. • PANIC mode. • Check Status. • Check In-Range. • Call driver.

• Built-in relays for central locking. • Built-in parking lights relay.

• Dome light delay. • Blocking engine output. • Blocking relay in complete kit. • Negative door switch input. • Positive door switch input. • TURBOTIMER. • Notify about defective zone.

• Defective zone bypass. • Two stage shock sensor in complete kit. • Antenna module with LED and CALL button. • 15 W siren in complete kit.

• Pin switch in complete kit. • Wire harness. • Full installation kit.

• User manual. • Packed in color gift box. Additional channels • Channel №1 - 300 mA output. COMFORT function • Channel №2 - 300 mA output. Trunk release output • Channel №3 - 300 mA output.

TURBOTIMER mode, keep engine running output. • Channel №4 - 300 mA output. NC (Normal Closed) blocking engine. • Channel №5 - 300 mA output. NO (Normal Open) blocking engine. Technical parameters Power supply: 9-15 V DC Current consumption: 15 mA Operating temperature range -30° C.

+ 75° C The maximum allowable current connections: - blocking engine relay: 30 A - parking lights relay: 10A - central door lock relays: 15A Battery type of LCD remote is AAA 1.5V Pneumatic/Electrical door lock type choose by switch Dome light delay 3/35 sec. Choose by switch.
